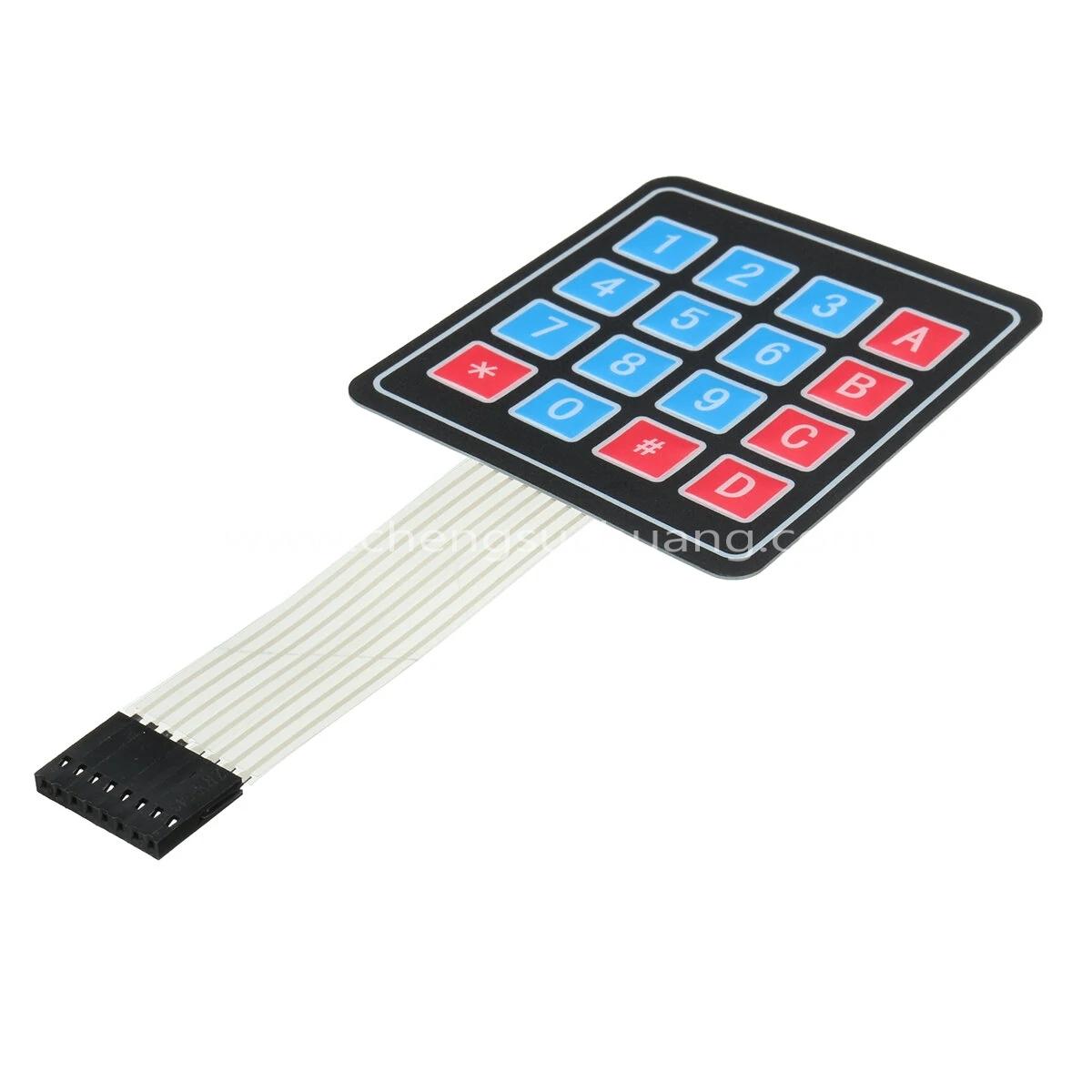

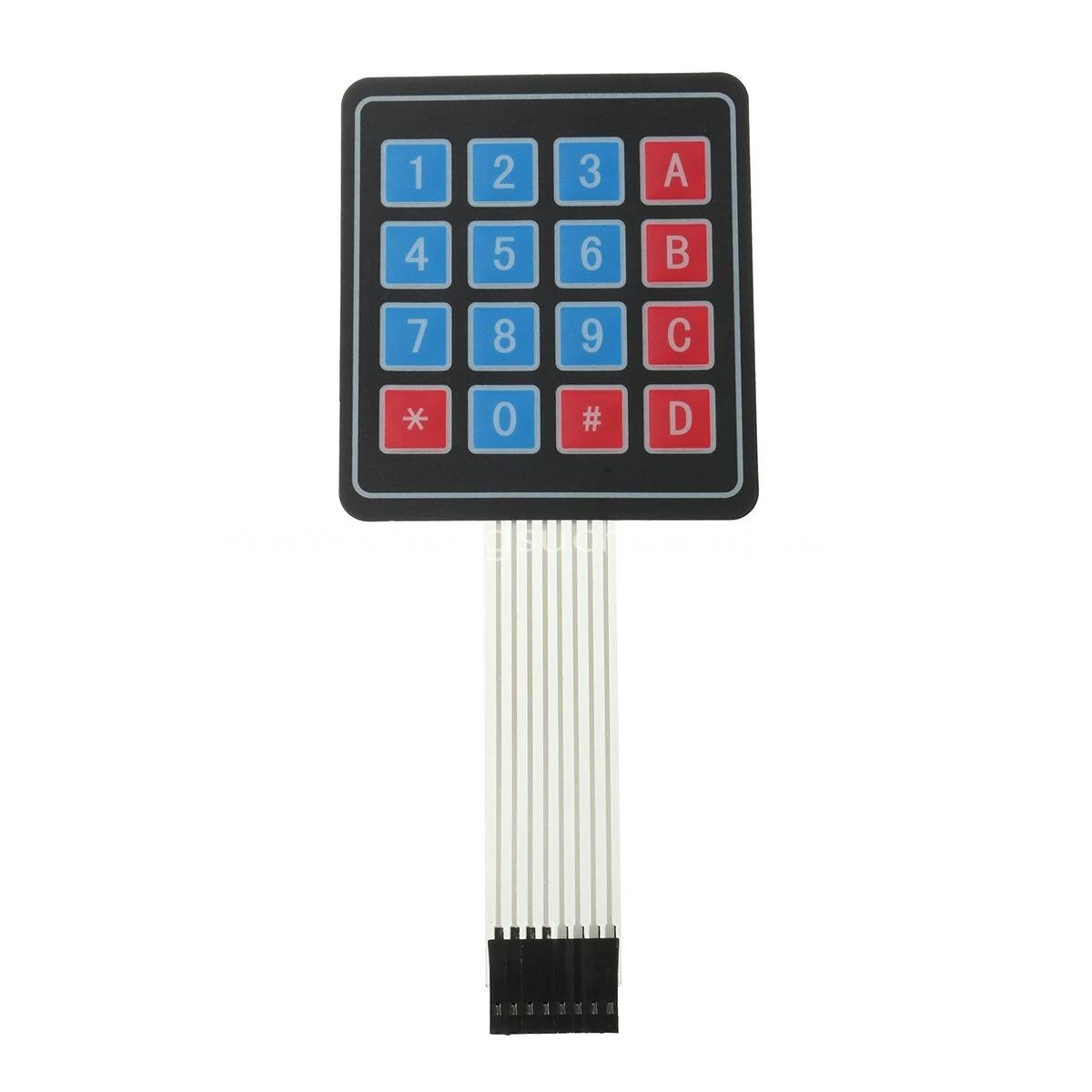

4x4 Matrix Array 16 Key Membrane Switch Keypad Keyboard for Arduino/AVR

Item No.:CSC-3042
Product description: 4x4 Matrix Array 16 Key Membrane Switch Keypad Keyboard for Arduino/AVR
INQUIRY

4x4 matrix

8P Dupont, Spacing 2.54mm, can connet the circuit by pin

Pull aprt the white paper back, it can be attached on the Chassis

Contact Resistance: 10Ω-500Ω

Insulation Resistance: 100MΩ 100V

Key Operating Force: 150-200N

Circuit Rating: 35V DC, 100mA, 1W

Dielectric Strength: 250VRms(50-60HZ/Min)

Electric Shock Jitter: <5ms

Operating Temperature: -40~+80°C

Storage Temperature: -40~+80°C

Vibration: 20G, max

Size: 6.8x7.6cm

Package includes:

1pcs 4x4 Matrix Array Keyboard Keypad Expanded Module For Arduino/AVR/PIC
