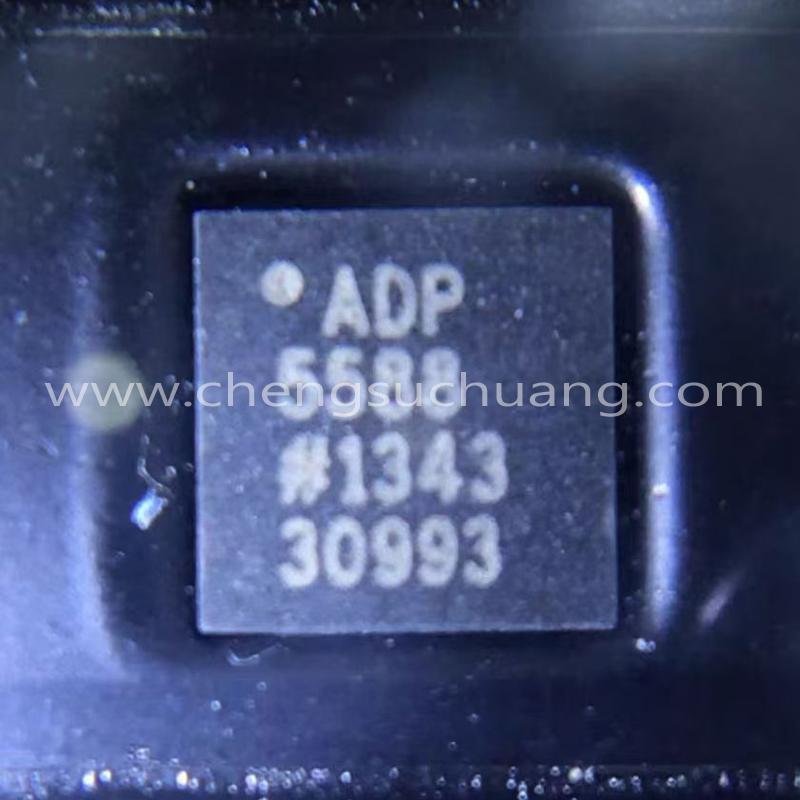

ADI IC Stock ADP5588BCPZ ADP5588ACPZ-R7

The ADP5588BCPZ is a versatile and highly integrated I/O port expander and keypad controller from Analog Devices. Designed to simplify the interface between microcontrollers and keypads or other input devices, this component is ideal for applications requiring efficient keypad scanning, GPIO (General Purpose Input/Output) expansion, and system monitoring.

Key Features:

• Keypad Controller: The ADP5588BCPZ supports up to an 8x10 keypad matrix, allowing it to handle up to 80 keys with automatic key press detection and de-bouncing, significantly reducing the processing burden on the main microcontroller.

• GPIO Expansion: Offers 18 programmable GPIO pins, which can be configured as inputs, outputs, or interrupts. This allows for flexible expansion of I/O capabilities in space-constrained designs.

• I²C Interface: The device features an I²C-compatible interface, making it easy to integrate with a wide range of microcontrollers and other I²C-enabled devices. It also supports interrupt functionality to signal the host processor when a key event occurs.

• Low Power Consumption: Designed for low power operation, the ADP5588BCPZ is well-suited for battery-powered applications, ensuring minimal impact on overall system power consumption.

• Programmable Logic: Includes programmable logic blocks that can be used to configure simple logic functions, providing additional flexibility and reducing the need for external components.

• Operating Voltage: The device operates within a voltage range of 1.8V to 3.3V, making it compatible with a variety of digital logic levels.

• Package: The ADP5588BCPZ comes in a compact 32-lead LFCSP (Lead Frame Chip Scale Package), with a small footprint that is ideal for modern compact electronics.

Applications:

The ADP5588BCPZ is ideal for a wide range of applications, including:

• Consumer Electronics: Smartphones, tablets, and remote controls, where it efficiently manages keypad inputs and GPIO expansion.

• Industrial Controls: Used in human-machine interfaces (HMIs) for industrial equipment, providing reliable key detection and system monitoring.

• Wearable Devices: Suitable for wearable technology that requires compact, low-power solutions for interfacing with buttons or other input mechanisms.

• Home Automation: Can be utilized in smart home systems for controlling multiple input devices and sensors.

Summary:

The ADP5588BCPZ is a highly integrated keypad controller and I/O expander that simplifies the design of systems requiring efficient keypad management and GPIO expansion. Its combination of low power consumption, flexible GPIO configuration, and programmable logic functions makes it a powerful choice for designers looking to optimize their embedded systems for performance and space efficiency. Whether in consumer electronics, industrial applications, or smart devices, the ADP5588BCPZ delivers reliable and robust functionality, streamlining the interface between microcontrollers and keypads or other input devices.
