  • DC 6-40V To 1.2-36V 300W 20A Constant Current Adjustable Buck Converter Step Down Module Board

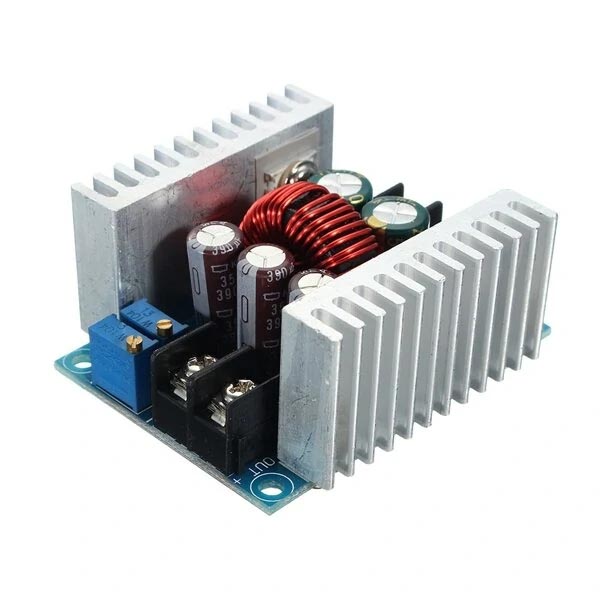

DC 6-40V To 1.2-36V 300W 20A Constant Current Adjustable Buck Converter Step Down Module Board

DC 6-40V To 1.2-36V 300W 20A Constant Current Adjustable Buck Converter Step Down Module Board

  • Item No.:CSC-7271
  • Product description: DC 6-40V To 1.2-36V 300W 20A Constant Current Adjustable Buck Converter Step Down Module Board
  • INQUIRY

DC 6-40V To 1.2-36V 300W 20A Constant Current Adjustable Buck Converter Step Down Module Board


Specifications:


Color: Silver

Material: Metal

Size: Approx. 60 x 52 x 27mm / 2.36 x 2.05 x 1.06''

Input Voltage: DC 6-40V (10V to 40V is suggested)

Output Voltage: DC 1.2-36V

Output Current: 20A(max.), 15A (suggested)

Efficiency: 97% (24V to 12V, 20A)

Output Ripple: ≤50mV

Wiring Method: Terminal

Short Circuit Protection: Self-recovery (cannot short circuit for a long time)

VO+: Output positive

VO-: Output negative

+IN: Input positive

-IN: Input negative

CV: Output voltage adjustment

CC: Output current adjustment

EN: Enable, low voltage level shut off output; suspension, high voltage level is effective

When input and output is common grounded, no-load CV output constant voltage, CC output constant current

Working Tempreture: -10°C-75°C


Features:


With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current

The efficiency can be up to 96%, measured at 20A, converting 24V to 12V

Designed with 75V/80A large current dual MOS tube

The buck module has 2 heat sink that could enhance heat dissipation

Wiring is convenient with these large current 30A screw terminals

Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output

Stable and reliable

Fine workmanship and durable
