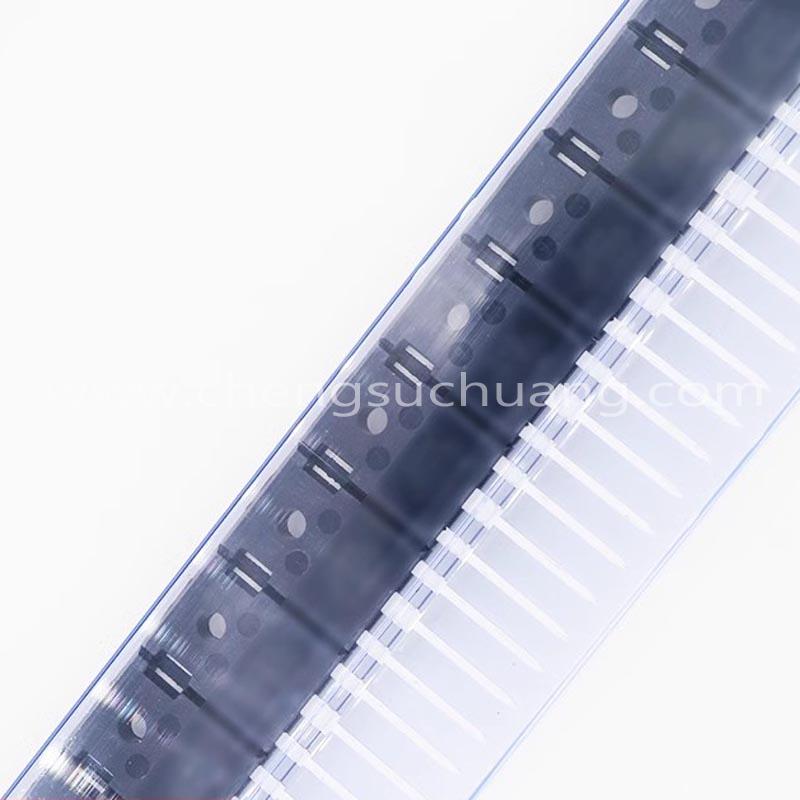

IGBT Insulated Gate Bipolar Transistor IKW75N65EH5

 IGBT Insulated Gate Bipolar Transistor IKW75N65EH5,other electronic components is also provided.RFQ can be sent to email:sales@chengsuchuang.com

The IKW75N65EH5 is a high-performance IGBT (Insulated Gate Bipolar Transistor) developed by Infineon Technologies, optimized for use in power electronics applications. This IGBT is part of the HighSpeed5 series, known for its efficiency, fast switching capabilities, and reliable operation in demanding environments.

Key Features:

• 650V Voltage Rating: The IKW75N65EH5 is rated for a maximum collector-emitter voltage of 650V, making it suitable for high-voltage applications such as inverters, power supplies, and motor drives.

• 75A Continuous Collector Current: Capable of handling a continuous collector current of 75A, this IGBT is designed to manage substantial power loads efficiently.

• Low Switching Losses: The IGBT is optimized for low switching losses, which contributes to higher efficiency and reduced heat generation, making it ideal for applications requiring high-frequency switching.

• High-Speed Switching: Designed for fast switching, the IKW75N65EH5 improves the performance of power converters and inverters, especially in applications where switching speed is critical.

• Soft Switching Characteristics: The device features soft switching, which minimizes electromagnetic interference (EMI) and enhances the overall reliability of the system.

• Robust Design: Built to withstand harsh operating conditions, this IGBT offers high thermal stability and ruggedness, ensuring long-term reliability in industrial environments.

Applications:

• Inverters and Converters: Ideal for use in solar inverters, uninterruptible power supplies (UPS), and power converters where efficient power handling is crucial.

• Motor Drives: Suitable for industrial motor control systems, ensuring smooth and efficient operation of electric motors.

• Switch-Mode Power Supplies (SMPS): Used in high-efficiency power supplies for various applications, including consumer electronics and industrial systems.

• Renewable Energy Systems: Essential for energy conversion in solar and wind power systems, contributing to the efficient harnessing of renewable energy.

Overall, the IKW75N65EH5 IGBT is a robust and efficient solution for high-power and high-voltage applications, offering fast switching, low losses, and reliable performance, making it an excellent choice for engineers looking to optimize power electronics designs.
