PIC16F690-I/SS

PIC16F690-I/SS

The PIC16F690-I/SS is a versatile and cost-effective 8-bit microcontroller from Microchip Technology, designed to offer robust performance and flexibility for a wide range of embedded applications. It features the powerful mid-range 8-bit PIC® architecture, which is well-known for its efficiency and ease of use.

Key Features:

• Enhanced Flash Program Memory: With 7 KB of Flash memory, the PIC16F690-I/SS provides ample space for storing code, making it ideal for complex applications.

• Integrated Peripherals: This microcontroller includes a wide array of integrated peripherals, including 12-bit Analog-to-Digital Converters (ADCs), comparators, and a variety of timers, which allow for precise control and measurement in your applications.

• Operating Voltage: Designed to operate in a range of 2.0V to 5.5V, it offers flexibility for use in low-power and standard voltage environments.

• I/O Pins: With 18 I/O pins, the PIC16F690-I/SS provides significant connectivity for various sensors, actuators, and other components, facilitating complex designs.

• EEPROM Data Memory: It includes 256 bytes of EEPROM, allowing for the storage of non-volatile data, essential for applications requiring data retention after power loss.

• Speed and Efficiency: Running at speeds up to 20 MHz, the PIC16F690-I/SS ensures quick and efficient execution of instructions, making it suitable for time-critical tasks.

Package Type:

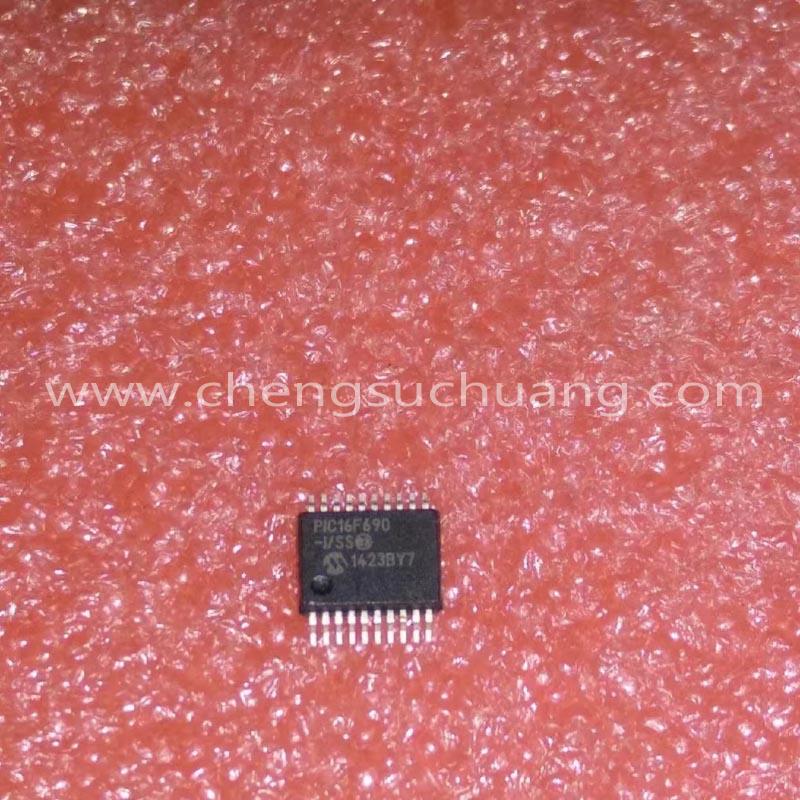

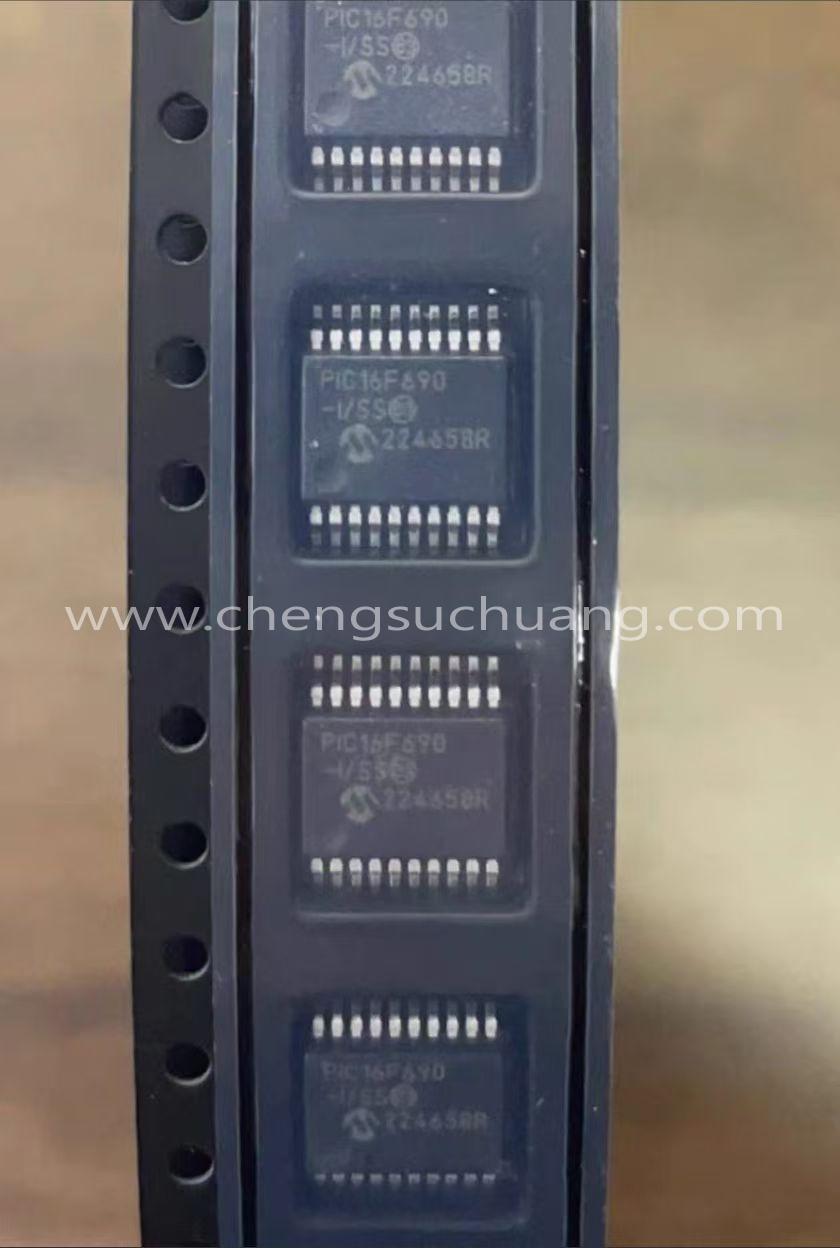

The PIC16F690-I/SS is offered in an SSOP-20 (Shrink Small Outline Package), which is compact and ideal for space-constrained applications, ensuring a small footprint on PCBs.

Applications:

• Consumer Electronics: Perfect for controlling various devices such as remote controls, power supplies, and other small appliances.

• Industrial Automation: Suitable for use in control systems, sensors, and industrial automation processes.

• Automotive: Can be utilized in automotive applications for sensor management and other control functions.

• Home Automation: Ideal for developing smart home devices, from lighting controls to security systems.

With its blend of performance, low power consumption, and a rich set of features, the PIC16F690-I/SS is an excellent choice for developers seeking a reliable microcontroller solution for both simple and complex projects.
