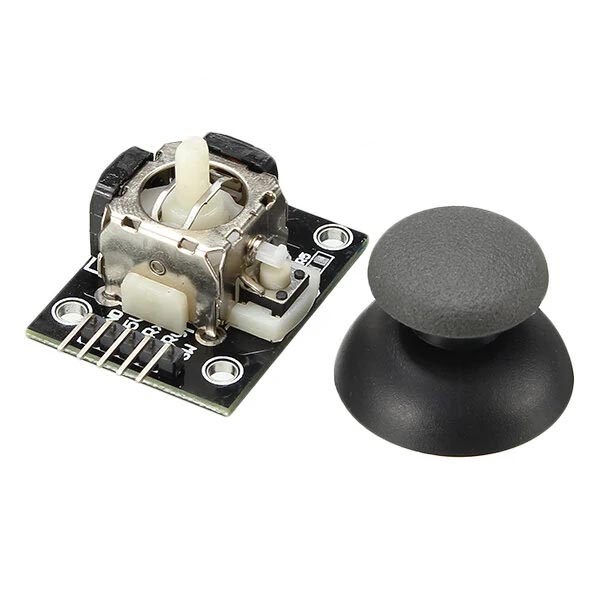

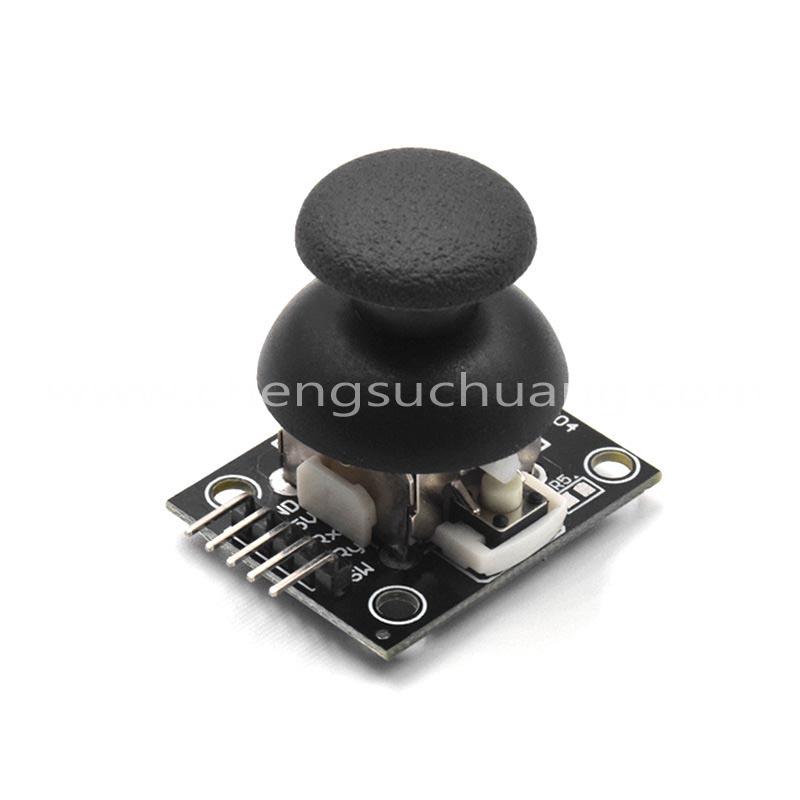

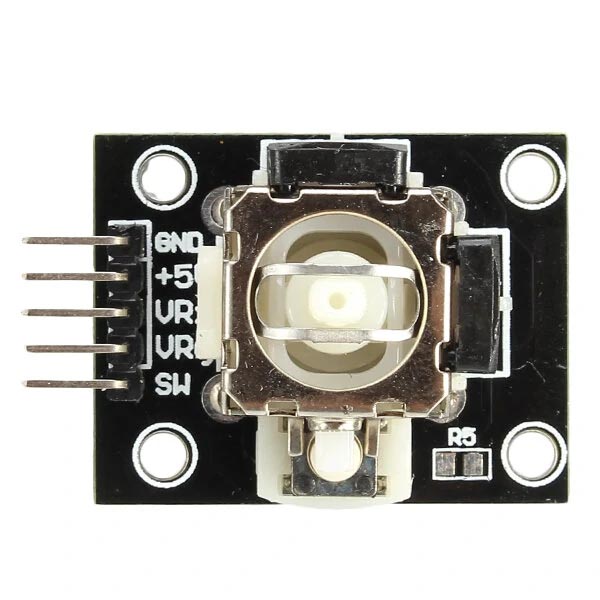

PS2 Game Joystick Push Button Switch Sensor Module


Description:

This is PS2 game joystick module for
Lots of robot projects need joystick. This module provides a affordable solution to that. Simply connect to two analog inputs, the robot is at your commands with X,Y control. It also has a switch that is connected to a digital pin. This joystick module can be easily connect to by normal IO Expansion Shield with supplied cables.
No soldering required, Reusable for prototyping or design applications of electronic circuit,modify or revise the circuits easily.
Accept resistors,transistors, diodes, LEDS, capacitors and other types of electronic components.
An invaluable tool for experimenting with circuit designs whether in the R&D.
Directional movements are simply two potentiometers - one for each axis
Compatible with interface

Specification:

Three axis (X,Y,Z(button))
Size:37x25x32mm
Weight: 15 g
Documents
WikiDoc
Tie-point 700
ABS plastic material
Completely reusable
Phosphor bronze nickel plated spring clips
Accepts a variety of wire sizes(29-20 AWG)
