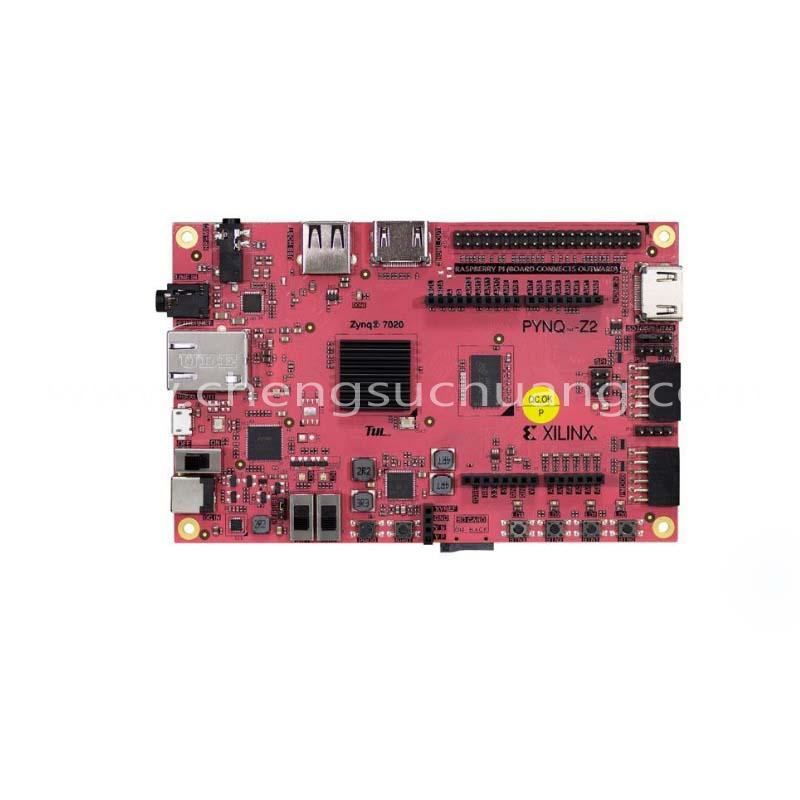

Python Programming PYNQ-Z2 Development Board for Xilinx

Python Programming PYNQ-Z2 Development Board for Xilinx

Specification:

• Size:87mm*140mm

• ZYNQ XC7Z020-1CLG400C motherboard information:

• 650MHz dual-core Cortex-A9 processor

• DDR3 memory controller with 8 DMA channels and 4 high-performance AXI3 slave ports

• High bandwidth peripheral controller: 1G Ethernet, USB 2.0, SDIO

• Low bandwidth peripheral controller: SPI, UART, CAN, I2C

• Programmable from JTAG, Quad-SPI flash and microSD card

• Artix-7 Series Programmable Logic

• 13,300 logic slices, each with four 6-input LUTs and 8 flip-flops

• 630 KB of fast block RAM

• 4 clock management slices, each with a phase-locked loop (PLL) and mixed-mode clock manager (MMCM)

• 220 DSP Slices

• On-chip analog-to-digital converter (XADC)

• storage:

• 512MB DDR3 with 16-bit bus @1050Mbps

• 16MB Quad-SPI flash with factory programmed special identifier (48-bit EUI-48/64™ compatible).

• Micro SD slot

• powered by:

• Powered by USB or any 7V-15V power source

• USB and Ethernet:

• Gigabit Ethernet PHY

• USB-JTAG programming circuit

• USB-UART Bridge

• USB OTG PHY (host only)

• Audio and Video:

• 3.5mm TRRS jack with 24bit DAC and support I2S protocol

• 3.5mm line input jack

• HDMI receiving port (input)

• HDMI source port (output)

• Switches, Buttons and LEDs:

• 4 buttons

• 2 slide switches

• 4 LEDs

• 2 RGB LEDs

• Expansion connector:

• Two standard Pmod ports

• 16 FPGA I/O ports (share 8 pins with the Raspberry Pi port)

• Arduino shield connector

• 24 FPGA I/Os

• Single-ended 0-3.3V analog inputs for 6 XADCs

• Raspberry Pi connector

• 28 FPGA I/Os (8 shared with Pmod A interface)
