3.95Inch 320*480 TFT Screen Module Compatible for UNO Board

Item No.:CSC-D641

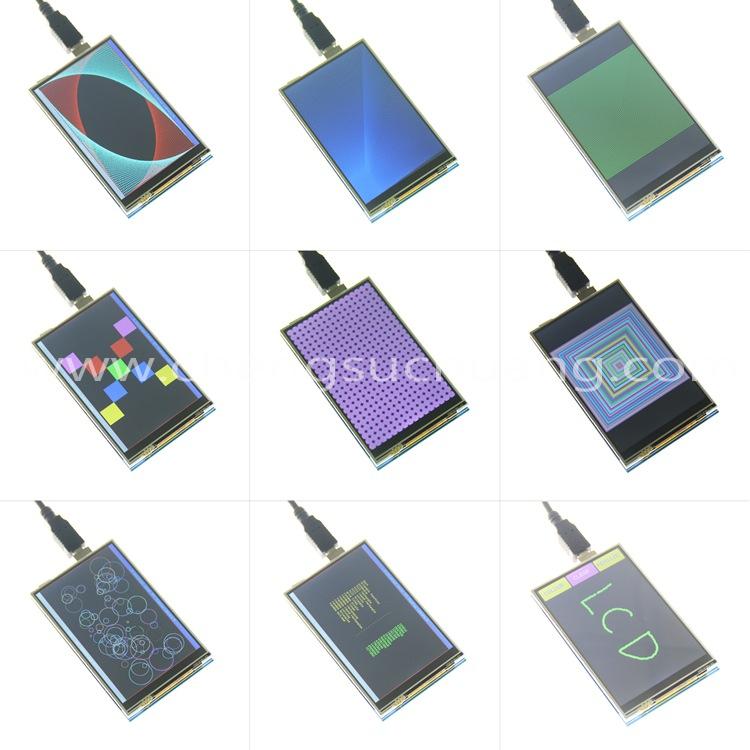

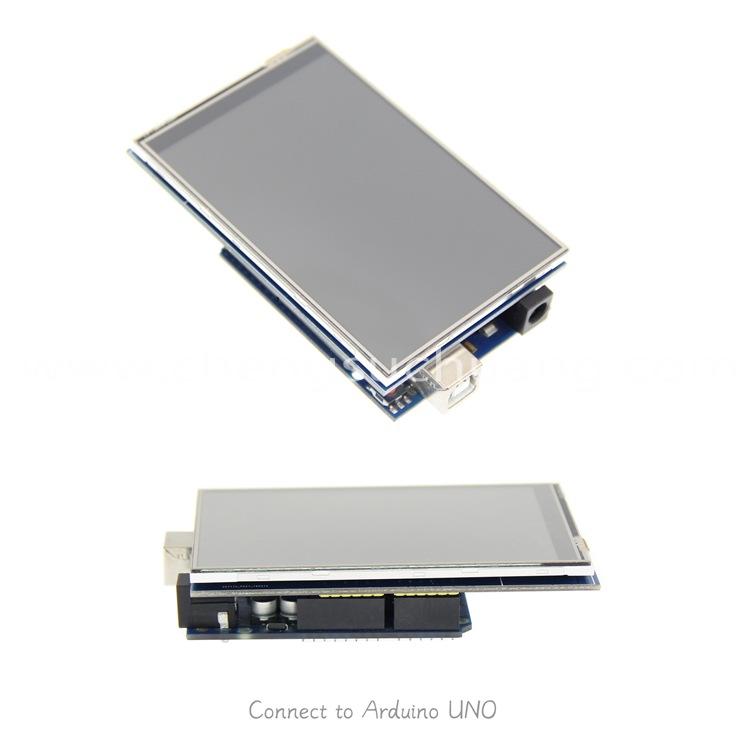

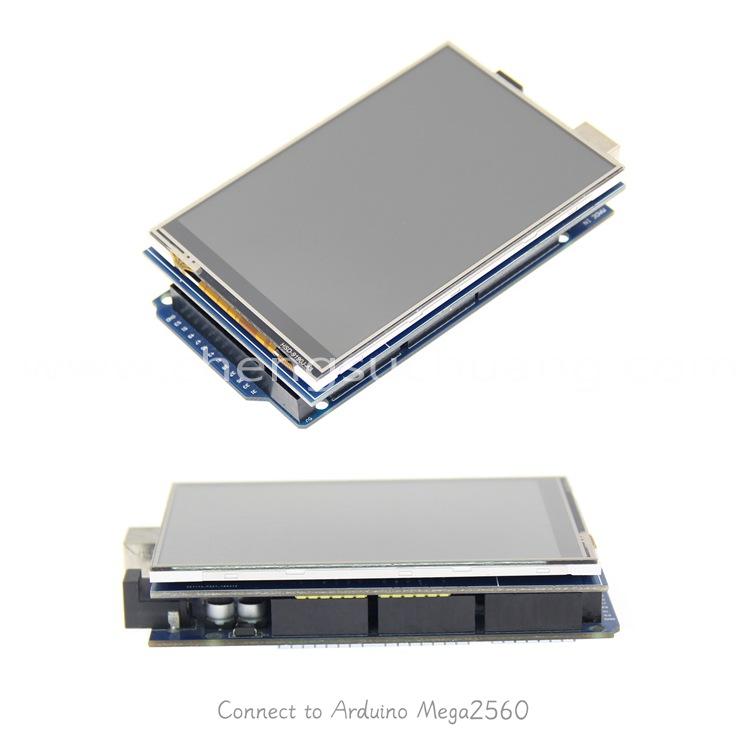

Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
3.95-inch color screen, support 16BIT RGB 65K color display, display rich colors
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Product description: 3.95Inch 320*480 TFT Screen Module Compatible for UNO Board
INQUIRY

3.95Inch 320480 TFT Screen Module Compatible for UNO Board

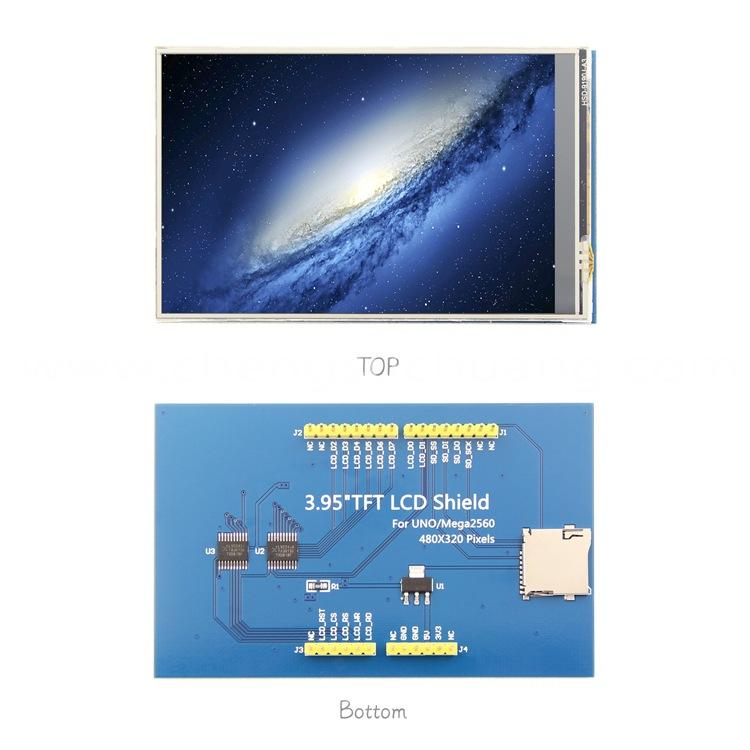

Pin Definition:

Number	Pin Label	Pin Description
1	LCD_RST	LCD bus reset signal, low level reset
2	LCD_CS	LCD bus chip select signal, low level enable
3	LCD_RS	LCD bus command / data selection signal, low level: command, high level: data
4	LCD_WR	LCD bus write signal
5	LCD_RD	LCD bus read signal
6	GND	Power ground
7	5V	5V power input
8	3V3	3.3V power input(this pin can be disconnected)
9	LCD_D0	LCD 8-bit data Bit0
10	LCD_D1	LCD 8-bit data Bit1
11	LCD_D2	LCD 8-bit data Bit2
12	LCD_D3	LCD 8-bit data Bit3
13	LCD_D4	LCD 8-bit data Bit4
14	LCD_D5	LCD 8-bit data Bit5
15	LCD_D6	LCD 8-bit data Bit6
16	LCD_D7	LCD 8-bit data Bit7
17	SD_SS	SD card SPI bus chip select signal, low level enable
18	SD_DI	SD card SPI bus MOSI signal
19	SD_DO	SD card SPI bus MISO signal
20	SD_SCK	SD card SPI bus clock signal
