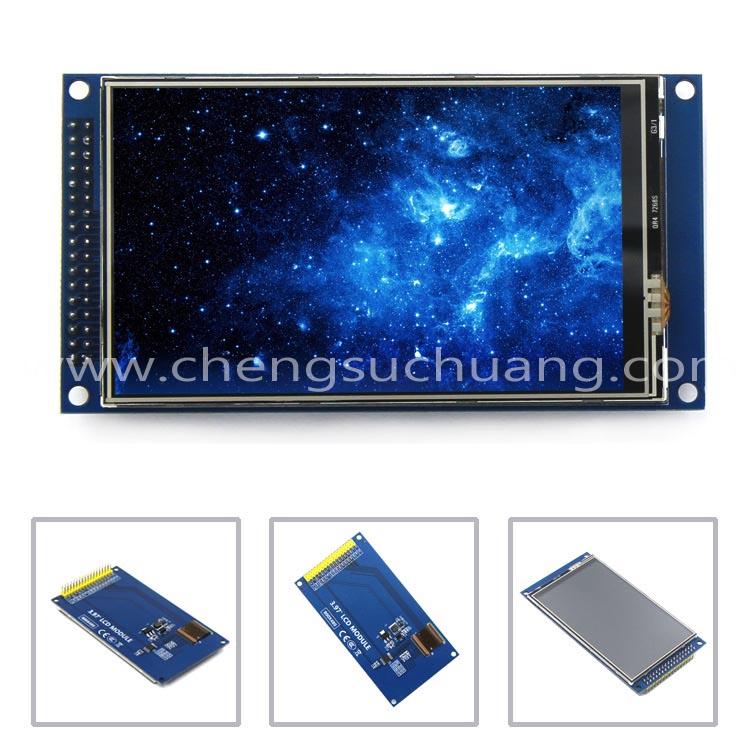

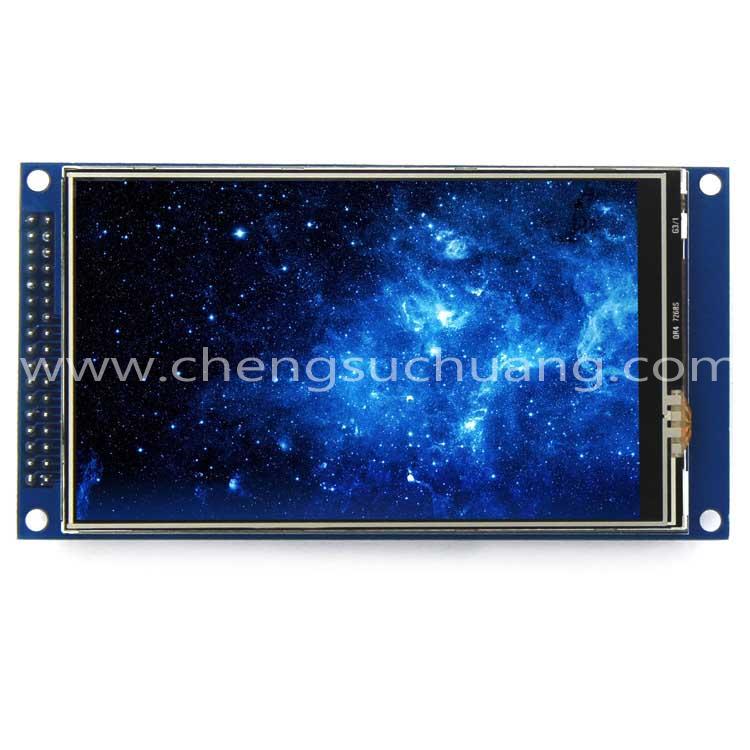

With Touch 4Inch 800*480 TFT Screen Module
Specification:
| Name | Parameter |
| Display Color | 16BIT RGB 65K color |
| Screen Size | 3.97(inch) |
| Type | TFT |
| Driver IC | NT35510 |
| Resolution | 800*480 (Pixel) |
| Module Interface | 16Bit parallel interface |
| Active Area | 51.84x86.40(mm) |
| Module PCB Size | 59.18x111.51(mm) |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Operating Voltage | 3.3V/5V |
| Power Consumption | TBD |
| Product Weight(Package containing) | 63g |

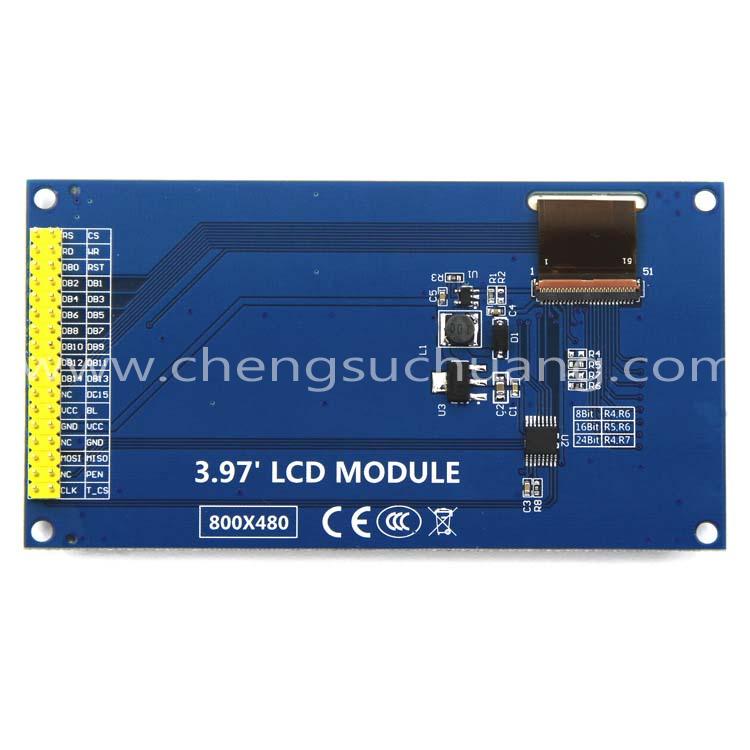

Pin Definition:
| Number | Pin Label | Description |
| 1 | CS | LCD reset control pin( low level enable) |
| 2 | RS | LCD register / data selection control pin(high level: register, low level: data) |
| 3 | WR | LCD write control pin |
| 4 | RD | LCD read control pin |
| 5 | RST | LCD reset control pin( low level reset) |
| 6 | DB0 | LCD data bus low 8-bit pin |
| 7 | DB1 | |
| 8 | DB2 | |
| 9 | DB3 | |
| 10 | DB4 | |
| 11 | DB5 | |
| 12 | DB6 | |
| 13 | DB7 | |
| 14 | DB8 | LCD data bus high 8-bit pin |
| 15 | DB9 | |
| 16 | DB10 | |
| 17 | DB11 | |
| 18 | DB12 | |
| 19 | DB13 | |
| 20 | DB14 | |
| 21 | DB15 | |
| 22 | NC | Undefined, reserved |
| 23 | BL | LCD backlight control pin(High level light) |
| 24 | VCC | Module power positive pin (module has integrated voltage regulator IC, so the power supply can be connected to 5V or 3.3V) |
| 25 | VCC | |
| 26 | GND | Module power ground pin |
| 27 | GND | |
| 28 | NC | Undefined, reserved |
| 29 | MISO | Touch screen SPI bus data input pin |
| 30 | MOSI | Touch screen SPI bus data output pin |
| 31 | PEN | Touch screen interrupt detection pin(Low level when a touch occurs) |
| 32 | NC | Undefined, reserved |
| 33 | T_CS | Touch screen IC chip select control pin(Low level enable) |
| 34 | CLK | Touch screen SPI bus clock control pin |
