  • 7 Inch 1024*600 TFT Display Module for Raspberry Pi 4B

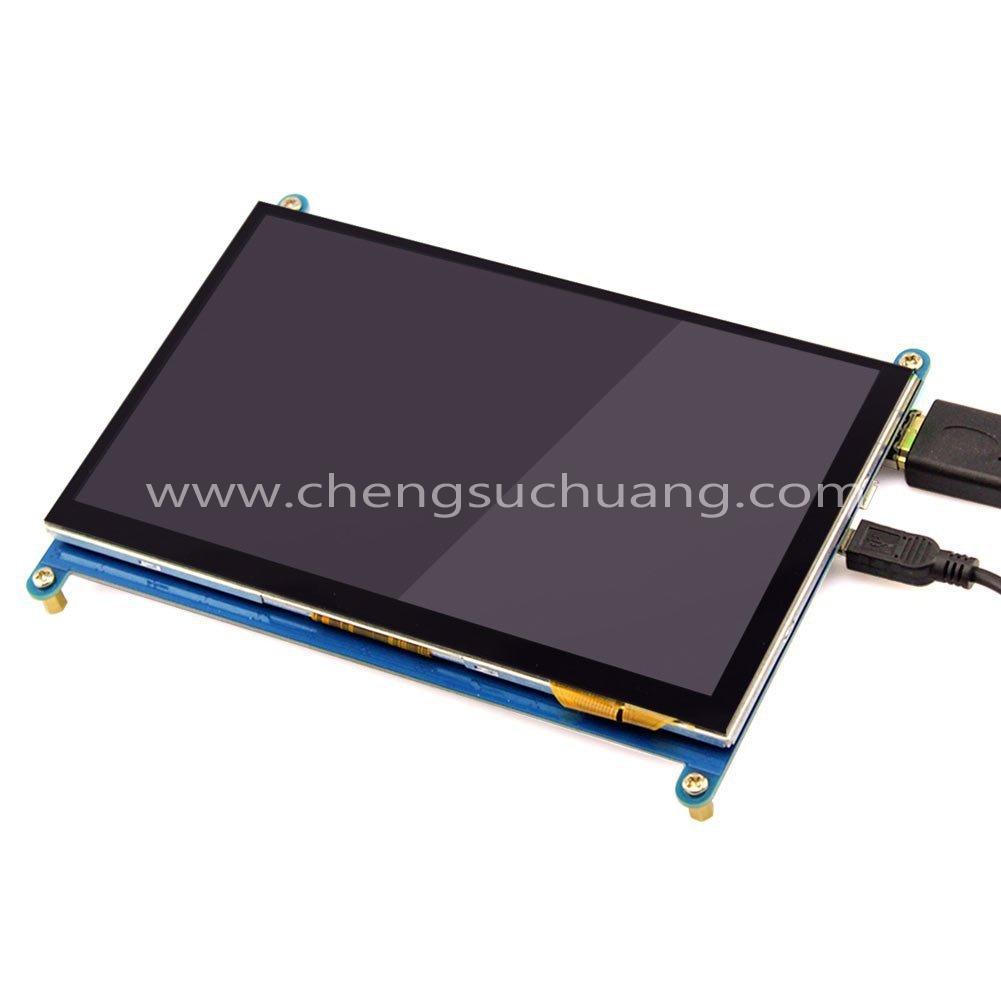

7 Inch 1024*600 TFT Display Module for Raspberry Pi 4B

7 Inch 1024*600 TFT Display Module for Raspberry Pi 4B

  • Item No.:CSC-D631
  • 7inch standard display, 1024 × 600 Hardware resolution, Up to 1920x1080 software configuration resolution
  • Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC
  • Can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display
  • Product description: 7 Inch 1024*600 TFT Display Module for Raspberry Pi 4B
  • INQUIRY

7 Inch 1024*600 TFT Display Module for Raspberry Pi 4B


CE, RoHS certification,800*480 Resolution available!



Specification

  • Size: 7.0 (inch)

  • Resolution: 1024*600 (dots)

  • Touch: five-point capacitive touch

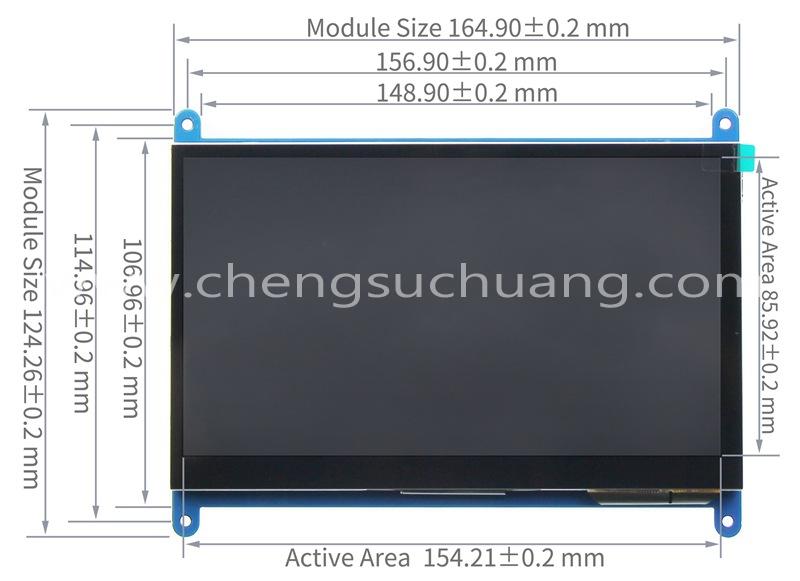

  • Active Area: 154.2144*85.92(mm)

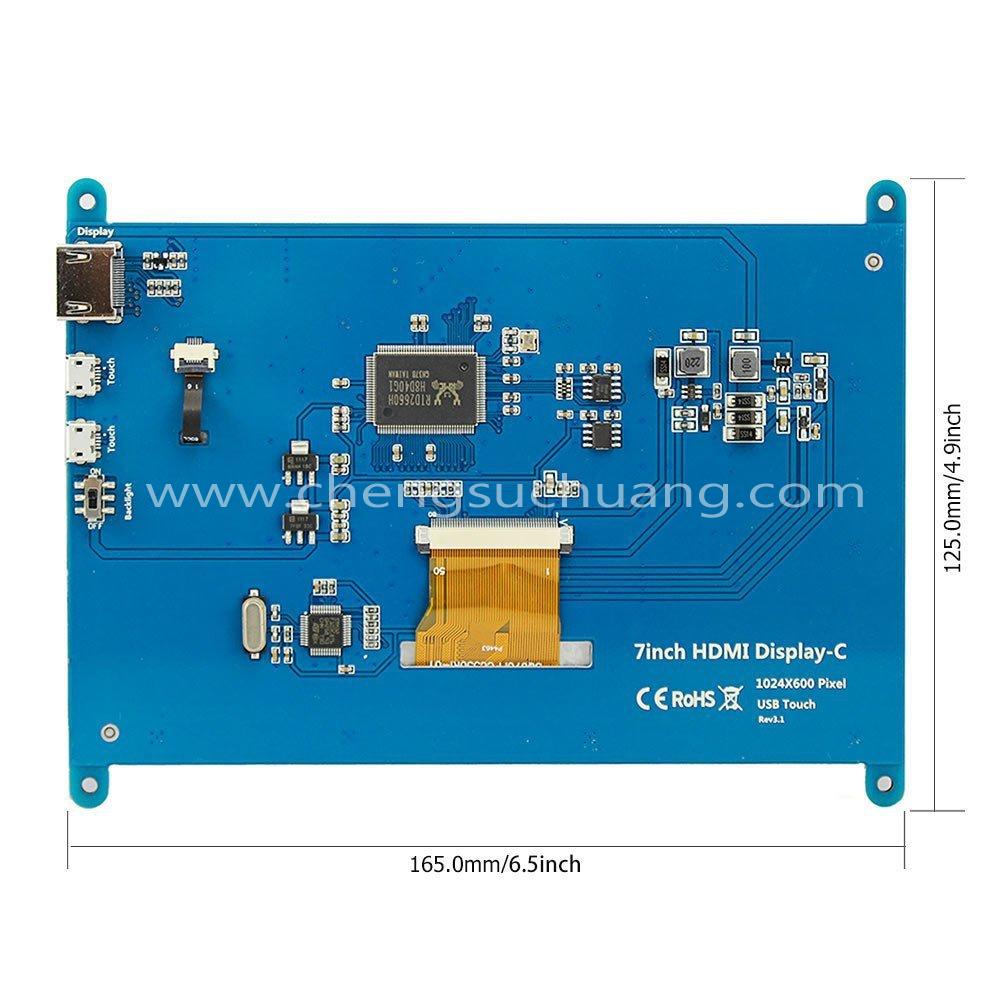

  • Product Size: 164.9*124.27 (mm)

  • Package Size: 211*150*53 (mm)

  • Rough Weight(Package containing): 405 (g)

  • Power Dissipation: 0.62A*5V @1024*600
